VISION

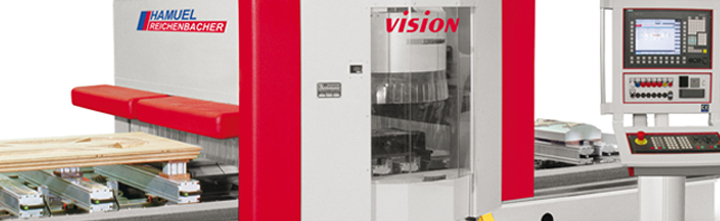

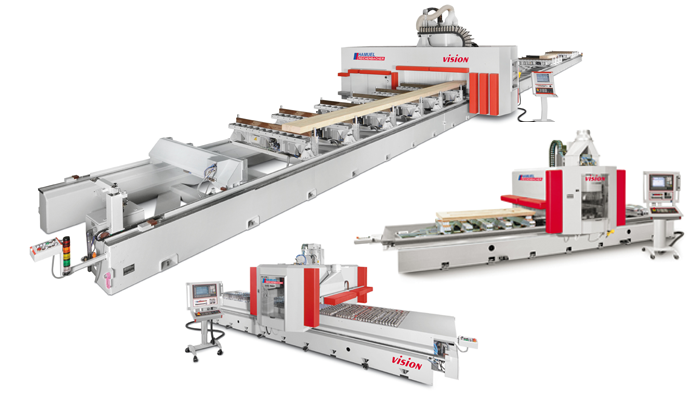

Equipped with a cardanic working head, the basic VISION is transformed into the VISION Sprint to provide small and medium-sized joinery and interior design companies with low cost access into 3-dimensional machining. The VISION Sprint unlocks the unique potential that high-speed 5-axis machining offers.

The positioning accuracy of the working aggregate means that the VISION Sprint is excellently suited to the requirements of stair and door production. The two swivelling axes are inclined at 45° to one another and, with optimum tool length, their centre axes intersect at the working point of the tool. By this principle the position of the working point does not change when swivelling in space, which means that no compensation movement in the linear axes is necessary. Thus the working area of the machine is only slightly reduced by the employed tool length when in the horizontal position.

Working head
3-axis or 4-axis working head, cardanic 5-axis working head, exchangeable additional heads, different types of drilling units, sawing heads with different performances

Cardanic working head
Performance 15.0/18.0kW, maximum performance from 10,000rpm. Number of revolutions programmable from 1,000 – 24,000rpm, Tool fixtures with hollow cone shank HSK 63-F, B-axis, swivelling range +/- 180°, C-axis, swivelling range +/- 360°

Tool changer
The automatic tool changing system is placed in the gantry. A magazine plate with 12 places in integrated.
(Magazine plate with 24 places or chain magazine with 40 to 60 places optional). Tool diameter max 300mm / Saw blades up to 350mm

Additional equipment

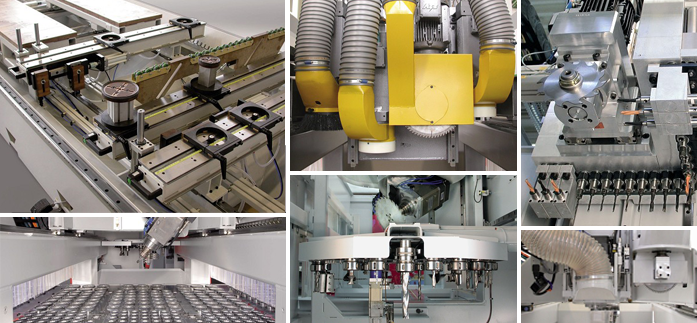

Machine table with beams (automatic positioning system optional), vacuum system 250m3/h, chip removal belt, special clamping devices, tool identification system, laser projection system, modem for telediagnostic, barcode reader, user software for the graphically supported program generation in stair and furniture production.

Control
Siemens Sinumerik 810 D / 840 D
